Hotplate Magnetic Stirrer
Product Enquiry

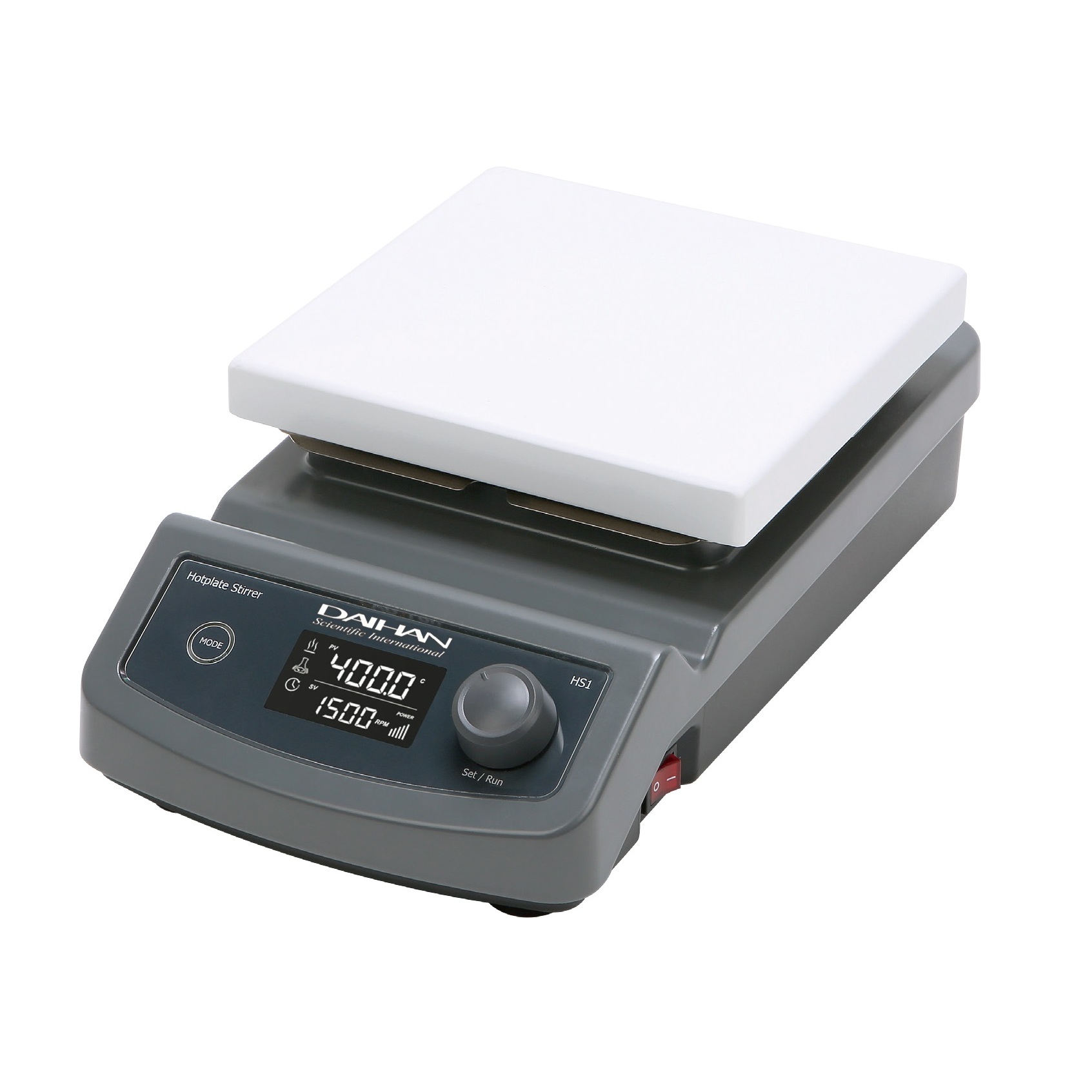

The EVOHS1 boasts a powerful and precise stirring function, thanks to its strong magnetic drive. The “Slow start function” ensures stability and a long life cycle, allowing for consistent and reliable performance over time. With high chemical resistance and a specially designed heat line, this hotplate magnetic stirrer achieves excellent temperature uniformity for your tasks.
In the event of stirring failure, the EVOHS1 is smartly equipped to detect and recover automatically, ensuring uninterrupted workflow. For added convenience, the EVOHS1-Set introduces two control modes – “water” and “oil.” The oil mode accommodates different thermal conductivity samples, such as silicone oil, expanding the range of tasks you can undertake. To enable these control modes, an external temperature sensor is included in the set.
Navigating and controlling the EVOHS1 is straightforward with its jog-dial controller featuring an electrostatic touch-type mode button and a high-fidelity LCD display. Graphic icons for each mode make operation intuitive and user-friendly. It also incorporates over-heat, load, and current protection mechanisms to ensure the safety of both your products and samples.
| EVOHS1 | EVOHS1-Set | |
| Plate size | 180 × 180mm | |
| Operation mode | Water and Oil mode available | |
| Plate Material | Ceramic coated aluminium | |
| Body Material | Powder coated aluminium | |
| Stirring Capacity | Max. 20L | |
| Motor | Brushless DC motor | |
| Speed range | 80 to 1,500 rpm | |
| Speed resolution | 5 rpm | |
| Temp. range/accuracy | Max. 400°C / ±0.3°C | |
| Temp. resolution | 0.1°C-display, 0.1°C-control | |
| Heating output/consumption | 600W / 650W | |
| Timer/Alarm | 99h 59m/Error status, Timer-end | |
| Display | High fidelity LCD with Black-Light function | |
| Controller | Digital fuzzy controller w/Electrostatic Touch button + Jog-dial | |
| Stirring bar usable | up to 50mm | |
| Permissible temp./RH % | ambient +5 ~ 40°C/80% R | |
| Safety device | Over-heat/load/current/protection | |
| Dimension/Weight | 180 × 325 ×110mm/3.43kg | 180 × 325 ×110mm/3.9kg |
| Packing size/Gross weight | 285 × 400 ×170mm/4.13kg | 285 × 400 ×170mm/4.6kg |
| Power supply | AC120V, 60Hz or AC230V, 50/60Hz, 1P | |
| Standard accessories | Temp. probe/stand rod/clamp holder | |
| Warranty | 3-year warranty | |
