- CE Certified
- PL(Product Liability) Insurance
- With Certificate & Traceability: Controlled by Serial Number, Certificate,
- Delivery-information, and Traceable Data Base System
- Excellent for Sample Drying and most General Lab Heating Applications
- Superior Temperature Uniformity: Less than 10% on the Plate at an Ambient Temperature
- Patented Jog-Shuttle Control System
- Digital Feedback Control by High-Performance Microprocessor
- Digital LCD Display with Back-Light Function, 0.1℃-Display, 0.5℃-Control
- Temperature Accuracy: ±0.3℃ at Set Temp
- Safety Circuit: Over Temp Protection
- Timer: 99hr 59min (with Continuous run), Error status & Timer-end Alarm
- Locking Mode for Experimental Safety Supported (Input to Jog Shuttle can be disabled)
- User’s Self-Compensation: to Control the Difference between Real Temp & Indicated Temp (±20.0℃)

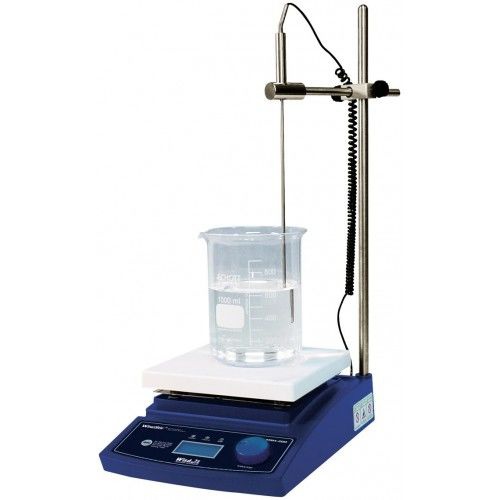

The Set option is supplied complete with an external temperature probe, support rod, and holder for temp. probe.
| |
Digital “HP-20D” |
Digital “HP-30D” |
| Plate Size(mm) |
180×180mm Plate-type |
260×260mm Plate-type |
| Material |
Body |
Powder Coated Aluminum |
Powder Coated steel |
| Plate |
Ceramic Coated Aluminum (Chemical / Acid Resistance, Easy to Clean) |
| Temp. Range & Uniformity |
Max. 380℃Temp., High Uniformity: Difference 10% less |
| Heating Power/Consumption |
600 W |
1.2 kW |
| Permissible Temp. & RH % |
R/T +5 ~ 50℃, 85% RH |
| Dimension & Weight |
206×307×h99mm, 2.8kg |
286×387×h99mm, 3.3kg |
| Packing Size & Gross Weight |
400×280×h200mm, 5 kg |
430×320×200hmm, 5 kg |
| Electrical Reqts. |
AC 230 V, 50 / 60 Hz |
