SKU: EVO OS1-Parent

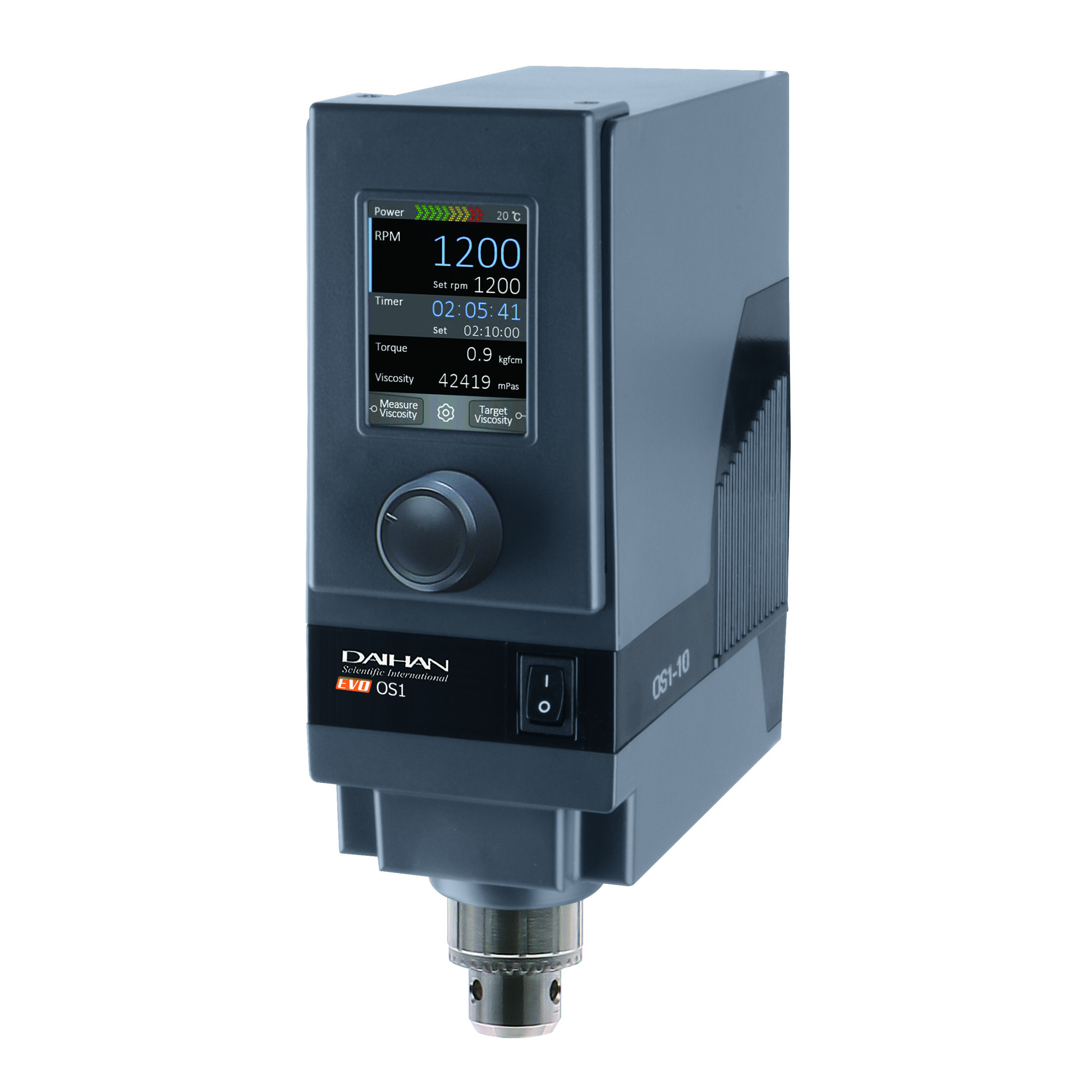

Viscosity measuring Overhead Stirrer
Categories: Overhead StirrersSKU: EVO OS1-Parent
Product Enquiry
FEATURES
Torque measuring function
Viscosity measuring function
- It is completed by extensive testing with viscosity standard solutions from Brookfield, so EVO OS1 guarantees 15% deviation
Target Viscosity function
- EVO OS1 can mix sample to a designated viscosity within the available range, upon reaching to target viscosity, stirring is automatically stopped
User-friendly display
- EVO OS1 displays Speed/Timer/Torque/Viscosity simultaneously
Belt—type gear system
- Powerful motor for soft and powerful operation
- 3-ratio of gear enables various range of viscosity—max. 150,000mPas
High durability
- Chrome-plated anti-rust chuck
High stability
- “Anti—trembling” function for impeller
High-fidelity LCD display (Graphic icons for each mode)
Jog—Dial controller and electrostatic touch—type mode button
Safety functions
- Overload & Heat Protector for Motor/Error Code Display
| Model | Option A. EVO OS1-10 | Option B. EVO OS1-15 | Option C. EVO OS1-20 | |
| Stirring Capacity | Max .25Lit. (H2O ) | Max .40Lit. (H2O ) | Max .60Lit. (H2O ) | |
| Maximum Viscosity | 70,000mPas | 100,000mPas | 150,000mPas | |
| Maximum Torque | 130Ncm | 195Ncm | 293Ncm | |
| Gear Rate | 2.0 : 1 | 3.0 : 1 | 4.5 : 1 | |
| Speed | Range | 30 to 2,000(3000)rpm | 20 to 1,200rpm | 15 to 800rpm |
| Resolution | 5 rpm -display /5 rpm -control | |||
| Motor | Direct-driven, Real-Time DC motor | |||
| Motor Rating (Input /Output ) | 200W / 160W | |||
| Timer /Alarm | 99hr59min/Error status, Timer -end | |||
| Controller | Digital Fuzzy Controller w /Electrostatic Touch button +Jog -dial | |||
| Display | High Fidelity LCD with Back -Light function | |||
| Viscosity Measuring Range | 10,000 to 100,000mPas (15%Deviation ) | |||
| Max ,impeller shaft diameter | 10mm | |||
| Other Special Functions | Torque Measuring in real time/Viscosity measuring function. Target Viscosity function /Real-Time Monitoring by USB port | |||
| Permissible temp./RH % | 0 to 40°C /80%RH | |||
| Material | ABS and Aluminum | |||
| Safety Device | Overload & Heat Protector for Motor /Error Code Display | |||
| Power Consumption | 280W | |||
| Dimension /Weight | 80x194x245mm, 3.95Kg | 80x194x245mm, 4.0Kg | 80x194x245mm , 4.6Kg | |
| Packing size /Gross weight | 310x365x135mm, 4.57kg | 310x365x135mm, 4.62Kg | 310x365x135mm, 4.68Kg | |
| Power supply | AC230V ,50/60Hz,1P | |||

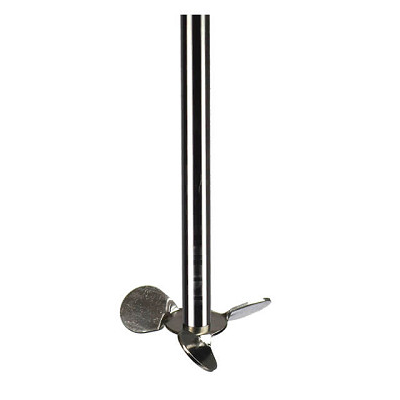

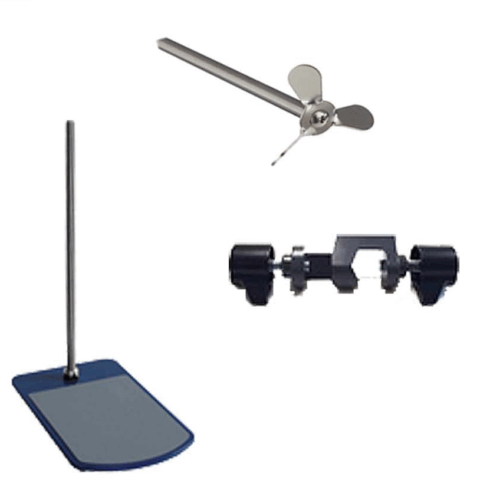

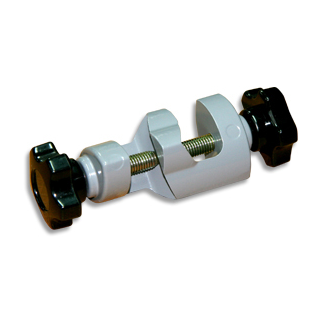

| Set models Include | Impeller /Standard plate stand /Clamp | |||
