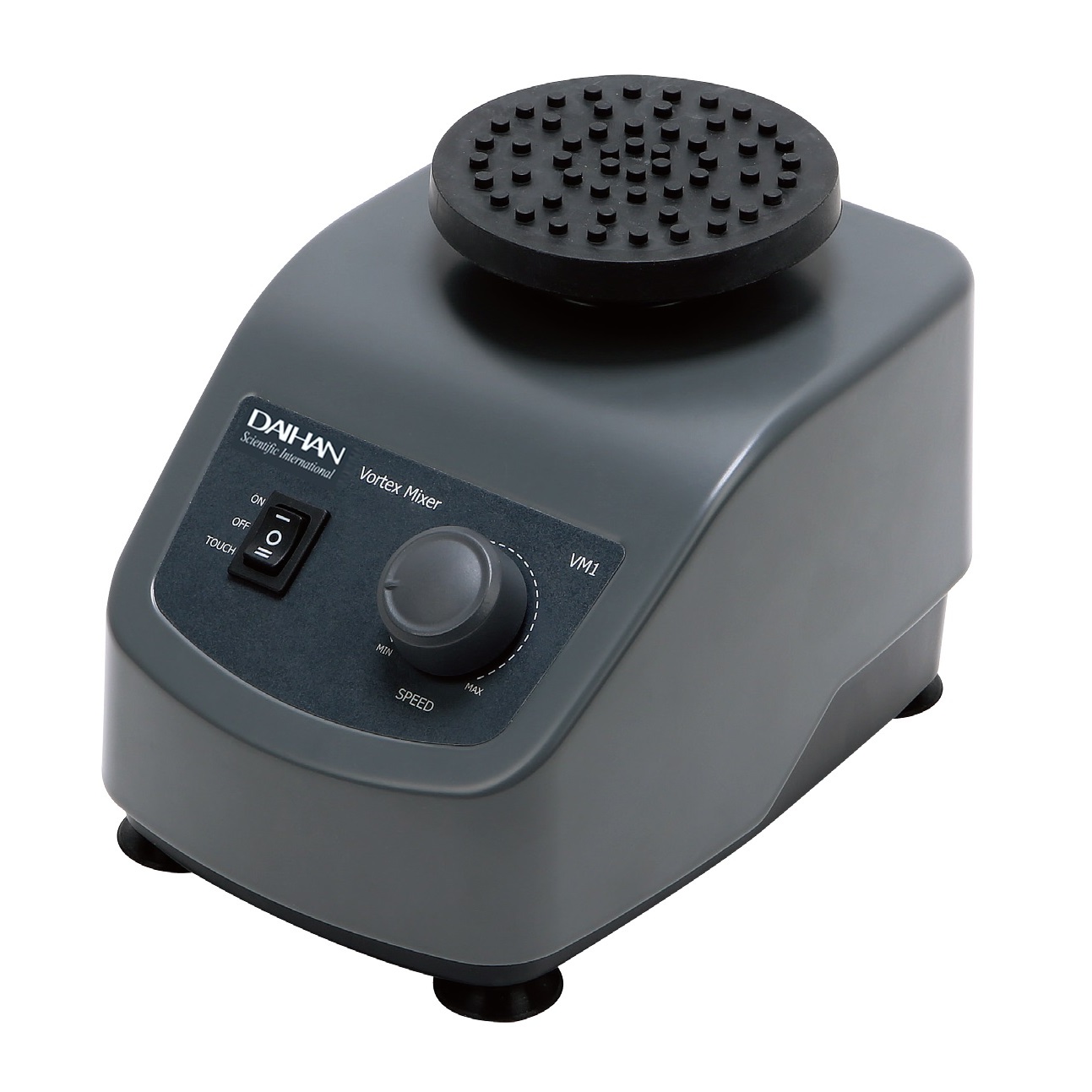

Vortex Mixer 0-3300rpm
In stock
Product Enquiry
** Replacing MaXshake VM30**
This mixer is perfect for blending solutions in Test Tubes or Small Flasks with its circular, oscillating movement. The variable speed control feature allows for a slow mixing action all the way up to a High-Speed vortexing, ensuring versatility for different applications.
The vortex mixer is crafted with an ergonomic design and a stable low-profile body; it has a robust and sturdy diecast construction for long-lasting durability. Its exceptional stability on the bench is achieved through a combination of weight and non-slip feet, providing a reliable mixing platform. This mixer is equipped with a powerful motor for efficient mixing with constant torque within the full range of speed. The optimized counterbalance system minimizes vibration, and specially designed Silicon feet absorb vibrations at high speeds, ensuring a smooth and stable operation.
With variable speed up to 3,300rpm and continuous-run, or touch-activated run modes, the Vortex Mixer offers flexibility for various mixing requirements. The electronic speed control feature maintains a constant speed even during changes in load, and speed regulation is straightforward with the knob provided on the control panel.
The mixer comes with one universal mixing head that accommodates a variety of tube sizes, accepting vessels up to 76mm in diameter. Conical tubes can be smoothly mixed by holding it with your hand. Its versatile design extends to a variety of mixing applications, making it an essential laboratory tool. The inclusion of MBR (Methyl Methacrylate Butadiene Rubber) Feet ensures ultra-stability and vibration damping, enhancing the overall performance of the Vortex Mixer.
Further details:
- Gentle mixing to re-suspending pellet
- Eccentric with Oil-less ball bearings
- Made in Korea
- PL(Product Liability) Insurance with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
| Model | VM1 |
| Speed Range | 0-3,300 rpm |
| Shaking Motion | Orbital, Circuit Orbit: 4.0mm |
| Operation Mode | Touch or Continuous |
| Speed Control | Stepless |
| Control | Analog Phase Controller |
| Motor | Brushless Shade Motor |

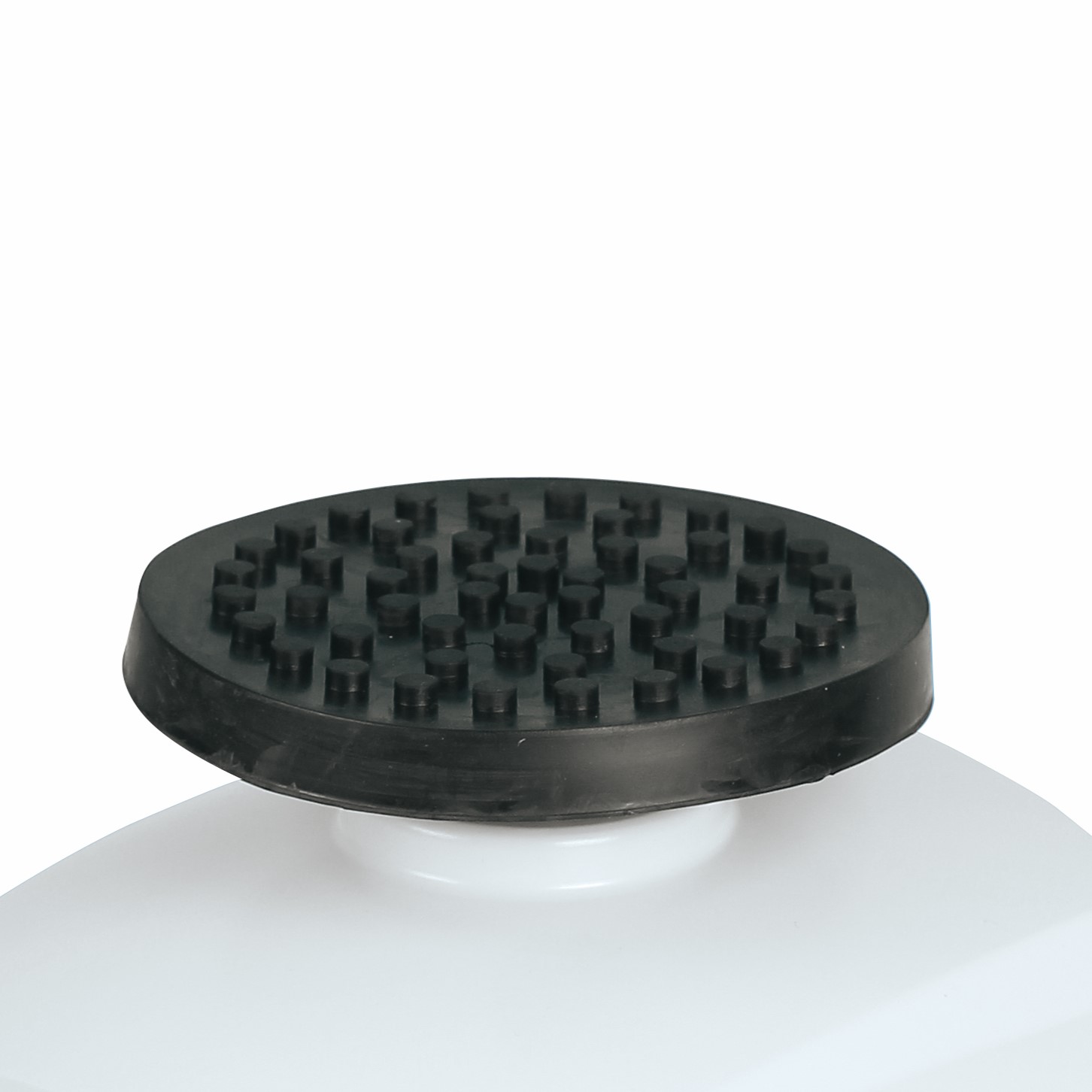

| Head (Included) | Pop-off Cup Head and Ø76mm Platform Head |
| Max.Load | 0.5kg |
| Material | Aluminum Die-casting with Powder Coating |
| Dimensions (wxdxh) (mm) | 131x185x125mm |
| Permissible Temp./RH% | 5~40°C/80% RH |
| Weight | 3kg |
| Others | 3-positions power switch operates |
| Power Consumption | 30W |
| Electrical Reqts. | AC 230V, 50 / 60Hz |
