SKU: WHM-C10D

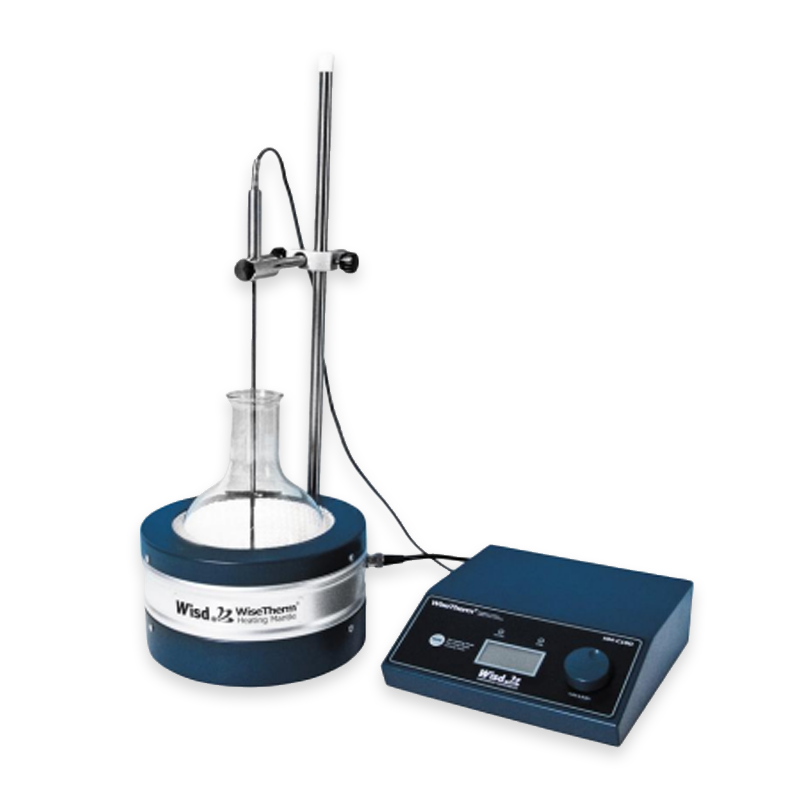

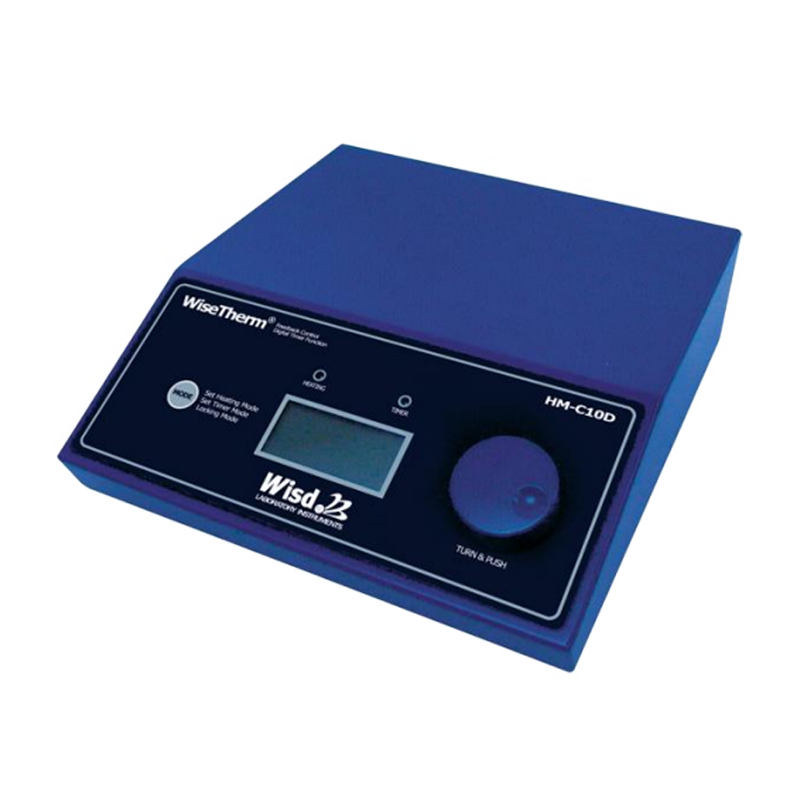

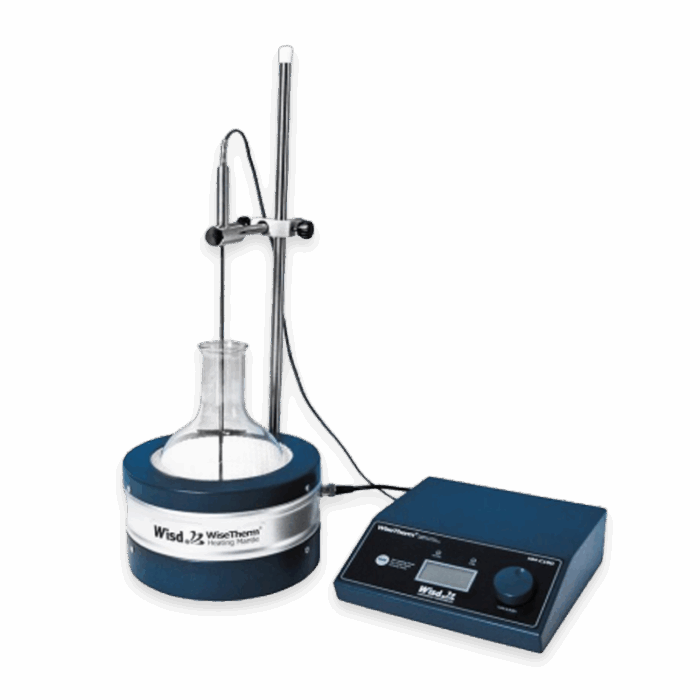

Digital Temperature Controller

Available on backorder

Categories: Heating MantlesSKU: WHM-C10D

PL(Product Liability) Insurance ■ patented Jog-Shuttle Control System
with Certificate & Traceability : Controlled by Serial Number, Certificate, Delivery-information, and Traceable
Data Base System
User’s Self-compensation Function to Control Difference between Real Temp. and
Indicated Temp. (±50℃)

* Digital Feedback Control by High-Performance Microprocessor

* Digital LCD with Back-Light Function * Small Footprint and User-Friendly Design.

* Storage function, Timer, Alarm & Locking Mode

* Heating Instruments can be controlled up to 2kW.

*Accurate Temp. Control of the Liquid in the Vessel using Optional Direct K-type Sensor

	WHM-C10D
Temp. Range & Accuracy	Ambient +5 ~ 700℃, ±1℃ at Set Temperature
Temp. Resolution	1℃-Display, 1℃-Control
Timer & Alarm	99hr 59min (Continuous run), Error status & Timer-end
Display	Digital LCD with Back Light Function (Temp., Timer)
Controller	Digital Feedback Controller with Jog Shuttle Switch (Turn+Push)
Control Capacity	up to 2 kW for 230V
Dimension & Weight	145×185×h68mm, 2.8 kg
Packing Size & Gross Weight	280×250×h110mm, 4 kg
Electrical Reqts.	AC 230 V, 50 / 60 Hz
